Lubricants in brewing

Recommended lubricants in brewing.

Fuchs Lubritech
Lubricants in brewing

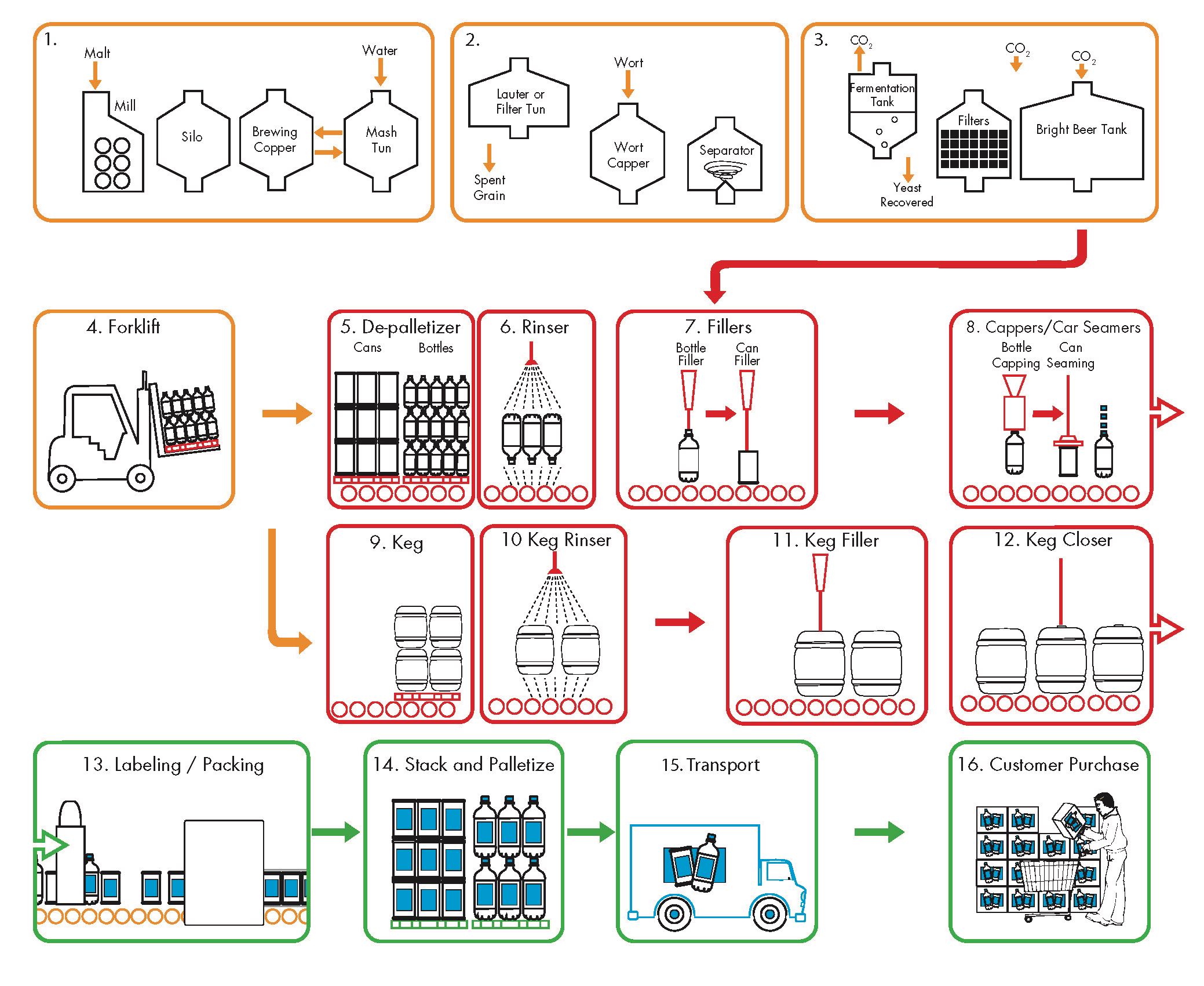

Steps in brewing and recommended lubricants.

1. Malting

lubricate application food grade -H1 compliant option
pumps - enclosed gear gear oil Cassida HF100, GL150, GLE150
mixer-, pump-axis, roller bearings grease NLGI 2, water resistant Cassida EPS 2
mixer - gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)

2. Brewhouse

lubricate application food grade -H1 compliant option
pumps - enclosed gear gear oil Cassida HF100, GL150, GLE150
mixer-, pump-axis, roller bearings grease NLGI 2, water resistant Cassida EPS 2
mixer - gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)

3. Fermentation

lubricate application food grade -H1 compliant option
self lubricating control valves oil-free
separators (gearbox) gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
separators (hydraulics) hydraulic oil Cassida HF 46 or 68
filter presses hydraulic oil Cassida HF 46 or 68

4. Forklifttruck

lubricate application food grade -H1 compliant option
roller bearings grease NLGI 2, water resistant Cassida EPS 2
chain chain oils Cassida Chain Oil
hydraulics hydraulic oil Cassida HF 68

5. De-palletiser

lubricate application food grade -H1 compliant option
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
vacuum pump vacuum pump oil Cassida VP100
roller bearings grease NLGI 2, water resistant Cassida EPS 2
hydraulics hydraulic oil Cassida HF 46 or 68

6. Bottle / can rinser

lubricate application food grade -H1 compliant option
roller bearings grease NLGI 2, water resistant Cassida EPS 2
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)

7. Filling machine (bottle, cans)

lubricate application food grade -H1 compliant option
lubrication system recirculation Cassida HF 100 or GL 150
rotating filler: roller bearings main axis automatic lubrication system Cassida EPS 2 or HDS 2
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
rotating filler: product seal & bearing silicon grease Cassida VTS 3
linear filler: chain conveyor water soluble surfactants not in program
roller bearings grease NLGI 2, water resistant Cassida EPS 2

8. Can seamer

lubricate application food grade -H1 compliant option
seamer heads - roller bearings grease NLGI 1, water resistant Cassida RLS 1 or EPS 1
seamer heads - roller bearings automatic lubrication system Cassida RLS 00 or RLS 0
lubrication system total loss or recirculation Cassida GLE 150, GLE 220 or FM TLS 150
lubrication system recirculation (incl.seamer heads) Cassida HF 100 or CR 100
roller bearings grease NLGI 1 or 2, water res. Cassida RLS 1 or 2, EPS 1 or 2
gear box gear oil Cassida GL 220 or GLE 220
main drive - gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)

9 Keg

lubricate application food grade -H1 compliant option
pneumatics hydraulic oil Cassida HF 15 or HF 32
conveyor chain oils Cassida Chain Oil or WG 220
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
roller bearings grease NLGI 2, water resistant Cassida EPS 2

10. Keg rinser

lubricate application food grade -H1 compliant option
roller bearings grease NLGI 2, water resistant Cassida EPS 2
high pressure pump (gear box) gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)

11. Keg filler

lubricate application food grade -H1 compliant option
hydraulics hydraulic oil Cassida HF 32
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
roller bearings grease NLGI 2, water resistant Cassida EPS 2
lubrication system (cams, bearings) total loss Cassida GL 320

12. Keg closer

lubricate application food grade -H1 compliant option
seal (in peroxide) silicon grease Cassida VTS 3
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
hydraulics hydraulic oil Cassida HF 32

13. Labelling /packing

lubricate application food grade -H1 compliant option
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
gear box - aggregate gear oil Cassida GL 150 or GLE 150
lubrication system recirculation Cassida HF 100 or GL 150
lubrication system chain oils Cassida GL 220
roller bearings grease NLGI 2, water resistant Cassida EPS 2
roller bearings - hot seal grease NLGI 2, high temperature Cassida HTS
shrink tunnel: lubrication system chain oils, high temperature Cassida GL 220 or WG 220

14. Stack and palletize

lubricate application food grade -H1 compliant option
roller bearings grease NLGI 2, water resistant Cassida EPS 2
hydraulics hydraulic oil Cassida HF 68 (optional)
gear box gear oil Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear)
Editorial

2006/42/EC Machine directive: Supplementary essential requirements

Summary of the requirements for food machinery in the Machinery Directive.

2.1. Foodstuffs machinery and machinery for cosmetics or pharmaceutical products

2.1.1. General

Machinery intended for use with foodstuffs or with cosmetics or pharmaceutical products must be designed and constructed in such a way as to avoid any risk of infection, sickness or contagion. The following requirements must be observed:

  1. materials in contact with, or intended to come into contact with, foodstuffs or cosmetics or pharmaceutical products must satisfy the conditions set down in the relevant Directives. The machinery must be designed and constructed in such a way that these materials can be cleaned before each use. Where this is not possible disposable parts must be used;

  2. all surfaces in contact with foodstuffs or cosmetics or pharmaceutical products, other than surfaces of disposable parts, must:

    • be smooth and have neither ridges nor crevices which could harbour organic materials. The same applies to their joinings,

    • be designed and constructed in such a way as to reduce the projections, edges and recesses of assemblies to a minimum,

    • be easily cleaned and disinfected, where necessary after removing easily dismantled parts; the inside surfaces must have curves with a radius sufficient to allow thorough cleaning;

  3. it must be possible for liquids, gases and aerosols deriving from foodstuffs, cosmetics or pharmaceutical products as well as from cleaning, disinfecting and rinsing fluids to be completely discharged from the machinery (if possible, in a ‘cleaning’ position);

  4. machinery must be designed and constructed in such a way as to prevent any substances or living creatures, in particular insects, from entering, or any organic matter from accumulating in, areas that cannot be cleaned;

  5. machinery must be designed and constructed in such a way that no ancillary substances hazardous to health, including the lubricants used, can come into contact with foodstuffs, cosmetics or pharmaceutical products. Where necessary, machinery must be designed and constructed in such a way that continuing compliance with this requirement can be checked.

2.1.2. Instructions

The instructions for foodstuffs machinery and machinery for use with cosmetics or pharmaceutical products must indicate recommended products and methods for cleaning, disinfecting and rinsing, not only for easily accessible areas but also for areas to which access is impossible or inadvisable.
